Wafer scale epitaxial growth of unidirectional WS2 monolayers on sapphire

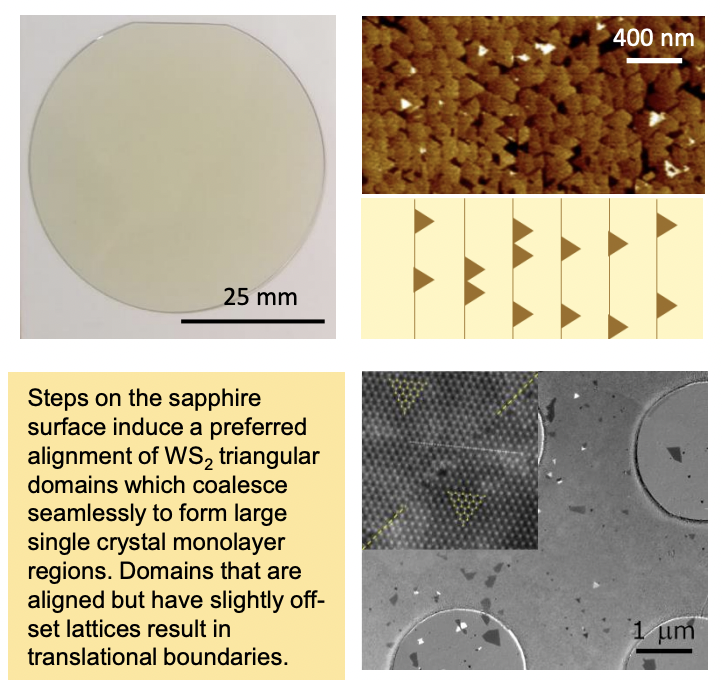

Realization of wafer-scale single-crystal films of transition metal dichalcogenides (TMDs) such as WS2 requires epitaxial growth and coalescence of oriented domains to form a continuous monolayer. The domains must be oriented in the same crystallographic direction on the substrate to inhibit the formation of inversion domain boundaries (IDBs), which form when oppositely oriented triangular domains coalesce. Here we demonstrate fully coalesced unidirectional WS2 monolayers on 2 in. diameter c-plane sapphire by metalorganic chemical vapor deposition (MOCVD) using a multistep growth process to achieve epitaxial WS2 monolayers. Transmission electron microscopy analysis reveals that the WS2 monolayers are largely free of IDBs but instead have translational boundaries that arise when WS2 domains with slightly offset lattices merge together. The unidirectional orientation of domains is attributed to the presence of steps on the sapphire surface coupled with growth conditions that preserve the aligned domain structure. The results demonstrate the potential of achieving wafer-scale TMD monolayers free of inversion domains with optical and transport properties approaching those of exfoliated flakes.
